Dana 170-4-671-1X

Call 800-621-3914 to order

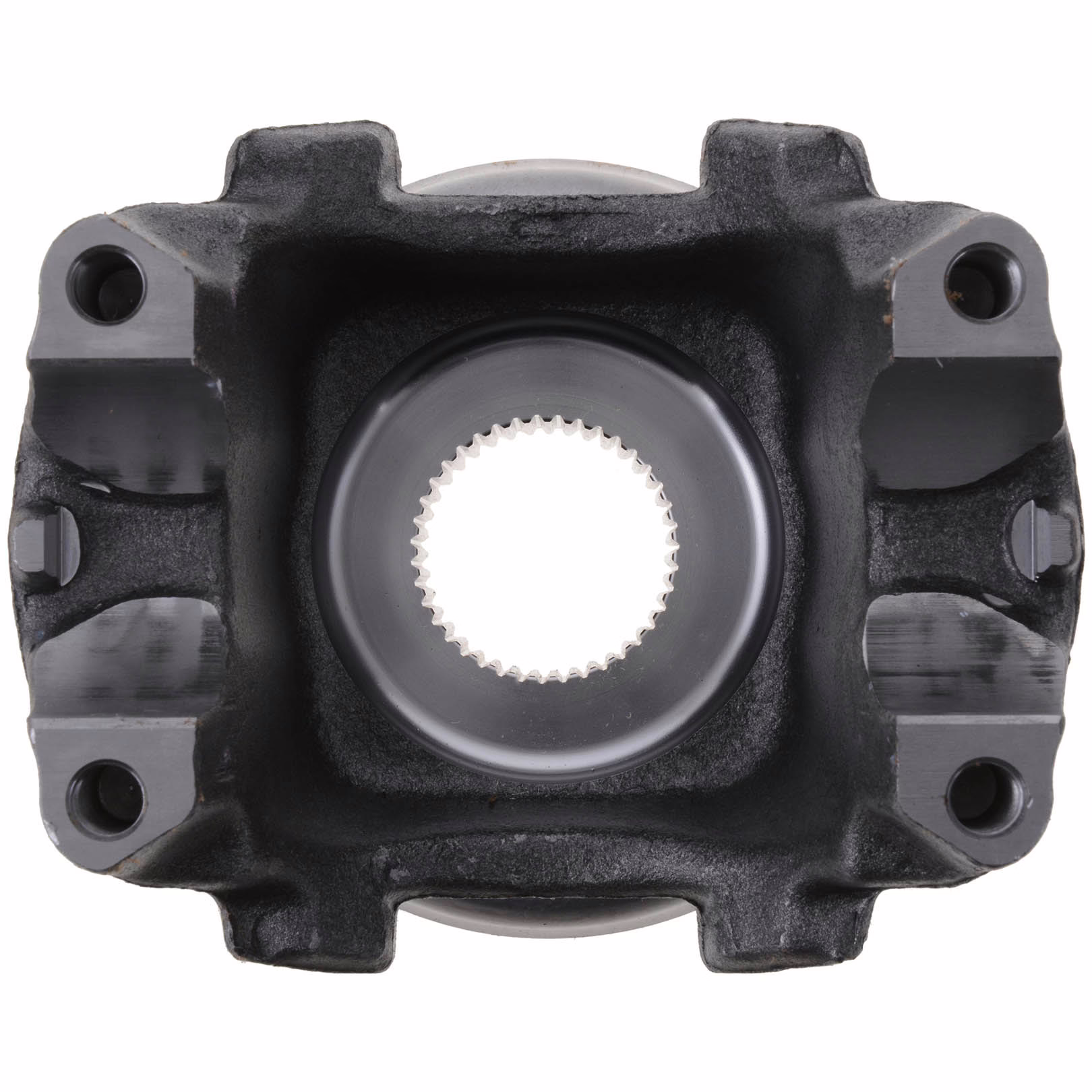

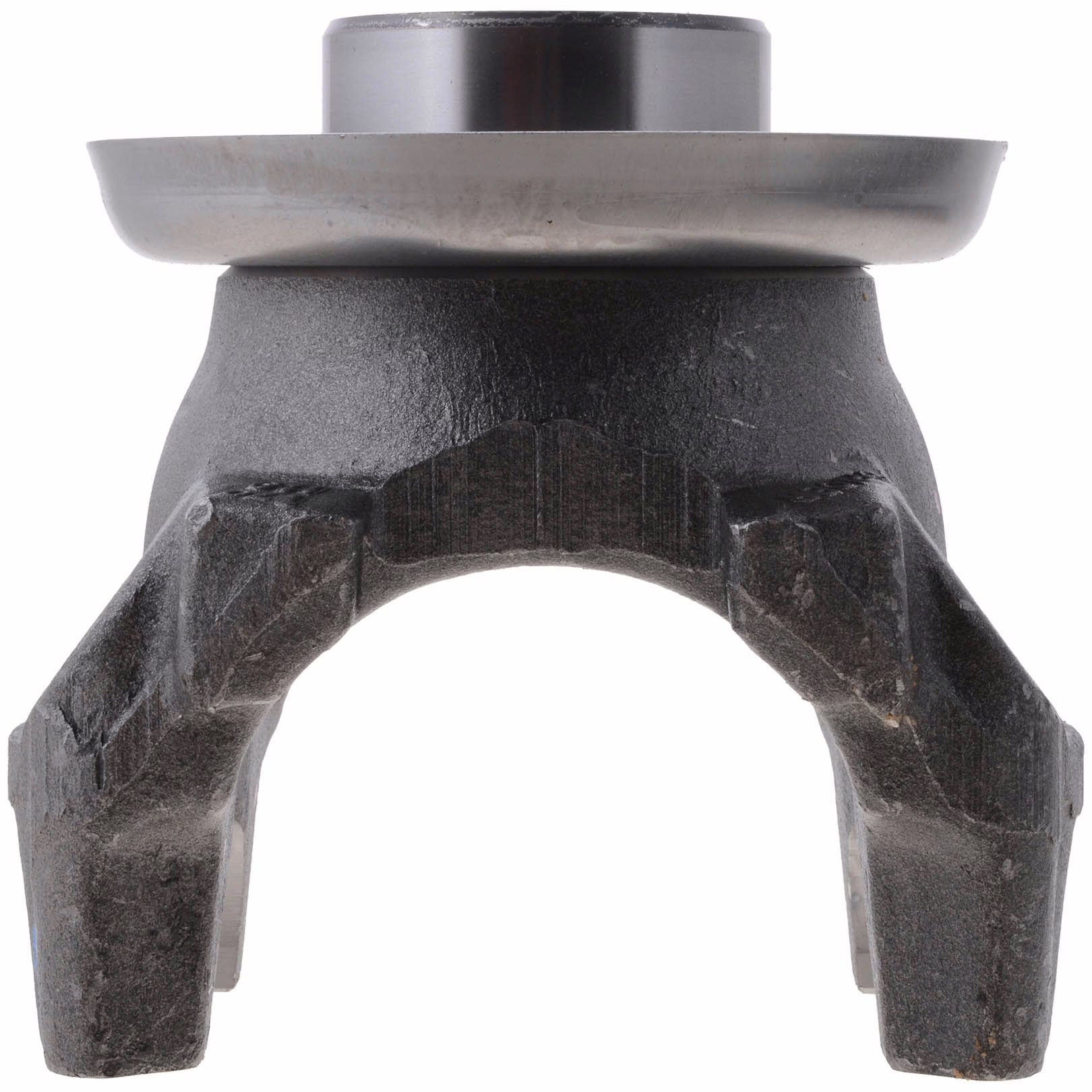

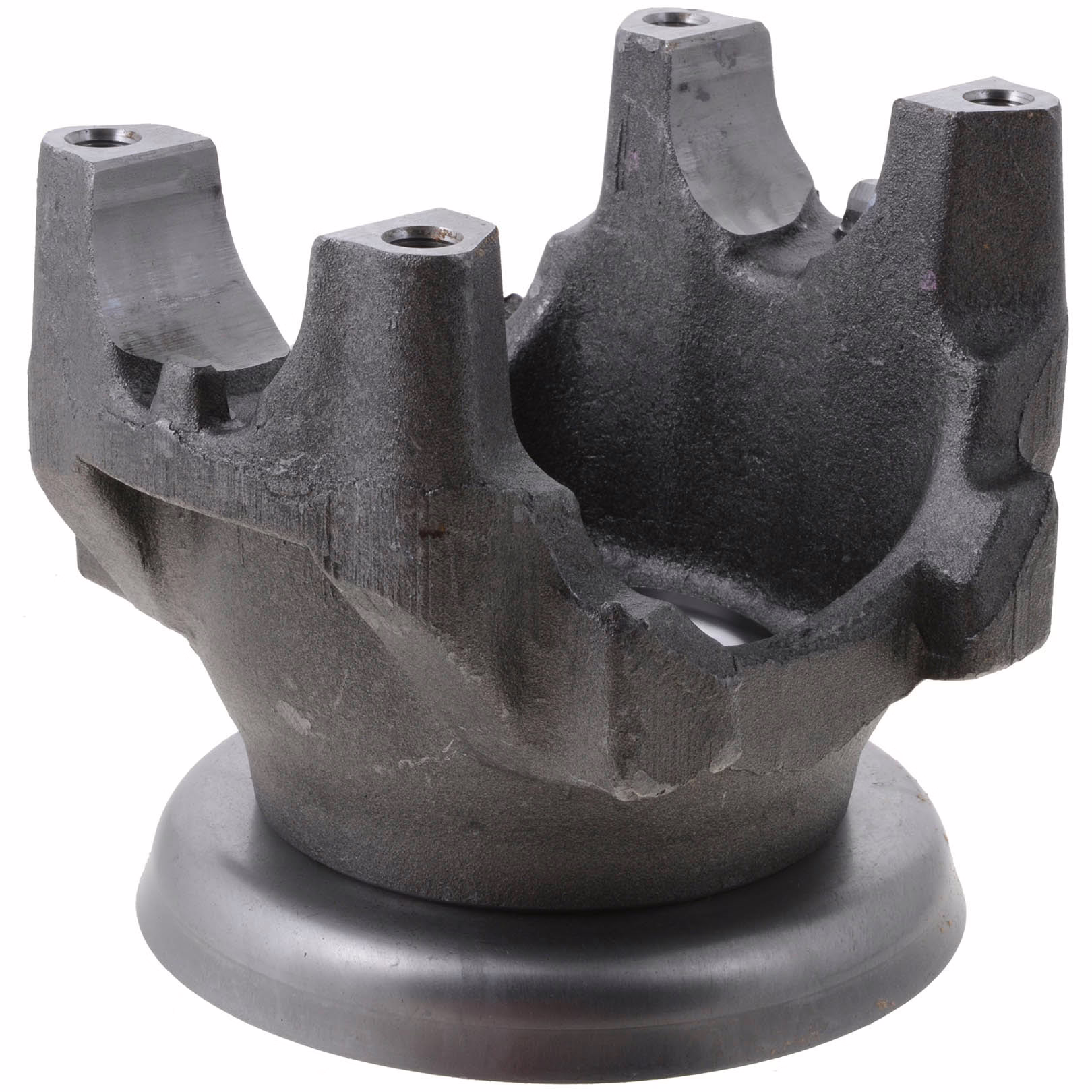

Differential End Yoke Assembly

SKU: 170-4-671-1X
Category: ,
Tags:
Brands:

Dana 170-4-671-1X
17046711XGTP

Differential End Yoke Assembly

Spline Count 39
Yoke Style HR

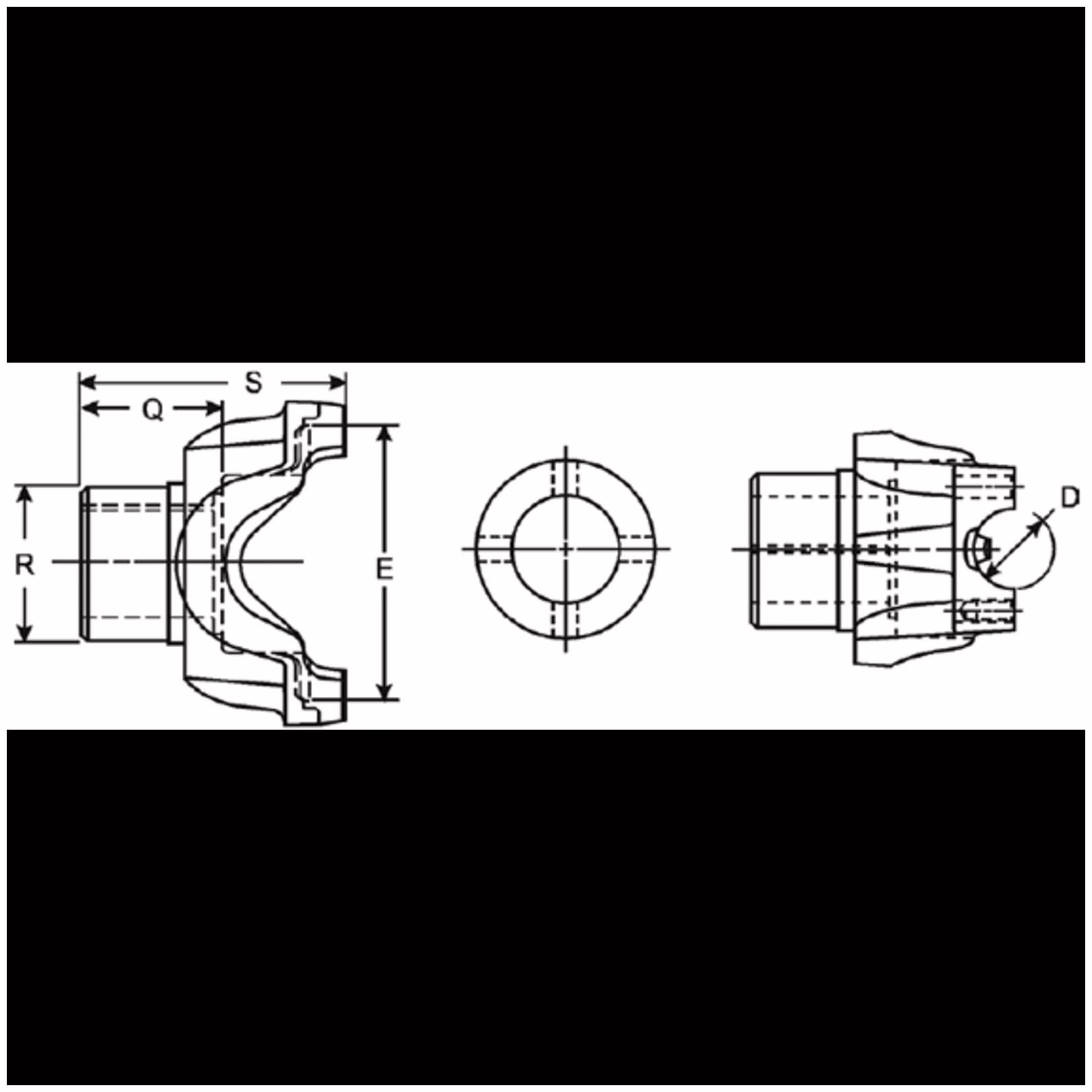

Hub Diameter R 3.000
C/L To End Hub S 6.391
Type Splined Hole
Outside Yoke Dimension (In) E 6.456
Yoke Bearing Dimension (In) D 2.166
Major Diameter 2.024
Involute Spline N
VMRS 022003072
Length Thru Hole Q 2.312
C-Bore Depth 0.105
Includes Slinger/Plug Y
Weight 15.47645081 lbs
