Spicer APO17504C

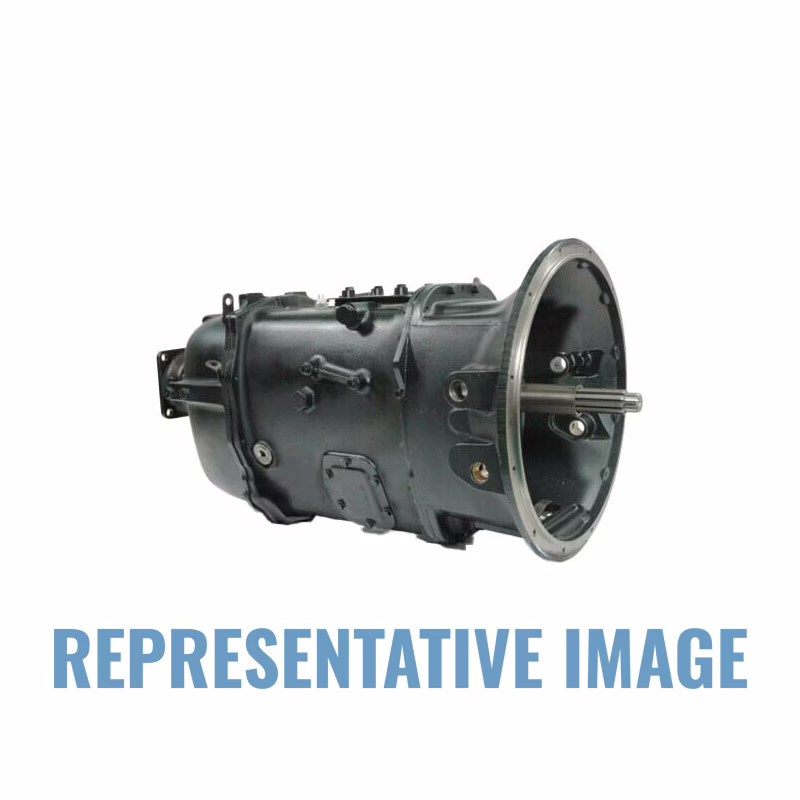

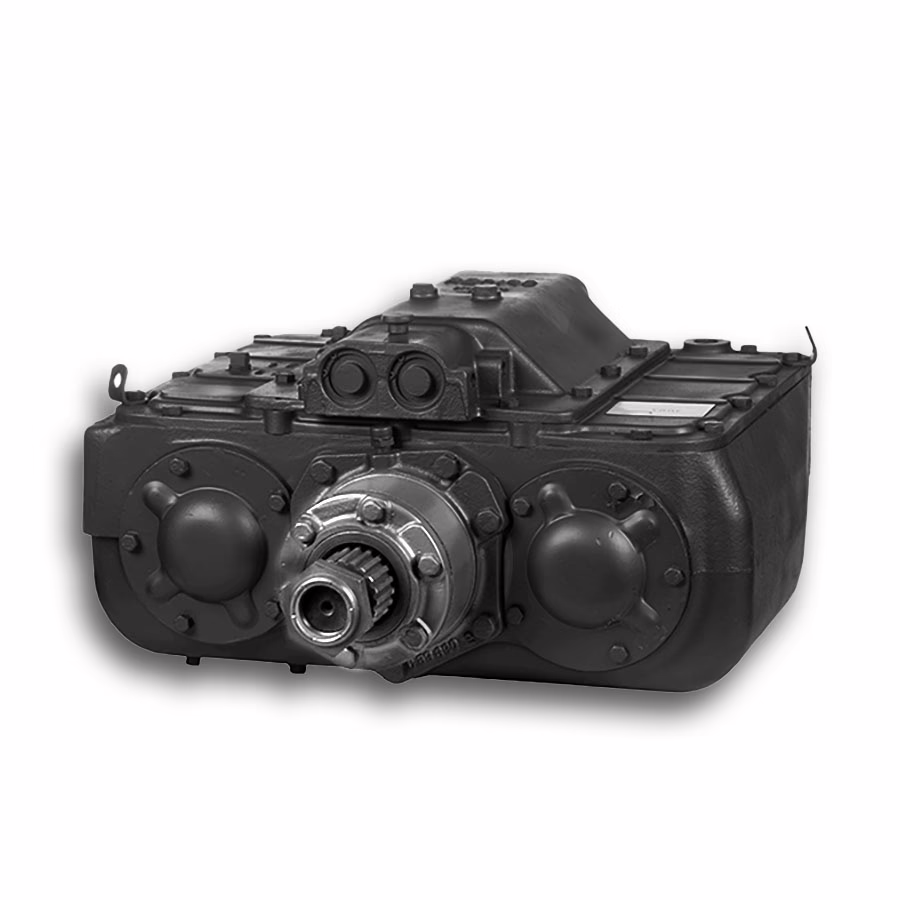

Spicer APO1750-4 Auxiliary Transmission

The Spicer APO1750-4 is a robust 4-speed auxiliary transmission designed to enhance torque capacity and gear versatility in heavy-duty commercial vehicles. Engineered for demanding applications, this transmission offers both manual and air-shift configurations to suit various operational needs.

Technical Specifications:

• Model: APO1750-4
• Speeds: 4 forward
• Shift Type: Manual or Air Shift
• Input Shaft Diameter: 2.0 inches
• Output Shaft Spline Count: 10
• Gear Ratios:
  • 1st: 2.37
  • 2nd: 1.24
  • 3rd (Direct): 1.00
  • 4th (Overdrive): 0.812
• Lubrication: Splash lubrication system
• Recommended Applications: Heavy-duty trucks, vocational vehicles, off-highway equipment
