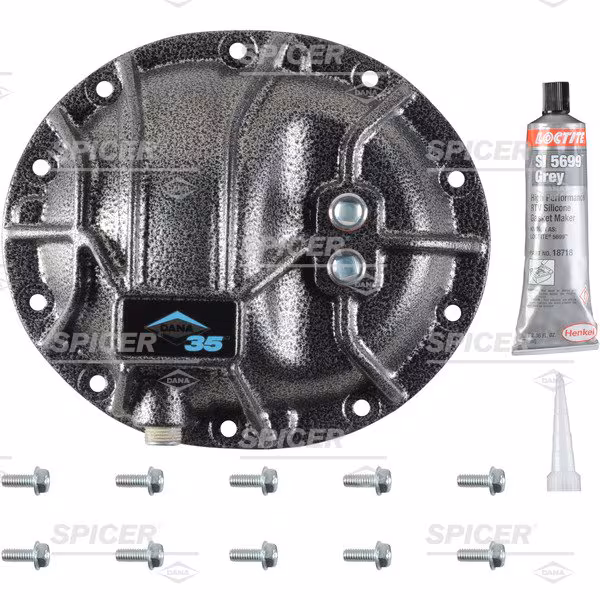

Dana Spicer 10023535 Dana 35 Nodular Iron Differential Cover
The Dana Spicer 10023535 Differential Cover is a heavy-duty replacement cover designed for Dana 35 axle assemblies. Manufactured from gray nodular iron, this cover offers greater strength and rigidity than a typical stamped-steel cover while helping protect the differential gears, bearings, and lubricant inside the axle housing.
Designed to Dana specifications, the 10023535 uses a 10-bolt mounting pattern and is supplied as a complete installation package with the required hardware, gasket, drain plug, and fill plug. Its durable nodular-iron construction makes it a strong replacement option for Dana 35 axles used in a wide range of Jeep and American Motors applications.
Technical Specifications
- Manufacturer: Dana Spicer
- Part Number: 10023535
- Product Type: Differential Cover
- Axle Model: Dana 35
- Material: Gray Nodular Iron
- Finish: Natural / Gray
- Number of Bolt Holes: 10
- Cover Bolt Thread Size: 5/16″-18
- Drain Plug Included: Yes
- Filler Plug Included: Yes
- Gasket Included: Yes
- Gasket Material: Metal
- Installation Hardware Included: Yes
- Position: Front or Rear, depending on application
- Approximate Gross Weight: 9.5 lb.
- Country of Origin: India
Features & Benefits
- Genuine Dana Spicer replacement differential cover
- Designed specifically for Dana 35 axle assemblies
- Strong nodular-iron construction for increased durability and housing protection
- 10-bolt OE-style mounting configuration
- Includes gasket, hardware, drain plug, and fill plug
- Helps protect differential gears and bearings from impact and contamination
- Precision manufactured to Dana fit, form, and performance requirements
- Suitable for replacement, axle rebuild, and upgrade applications
Common Applications
The Dana Spicer 10023535 is used with Dana 35 rear axle assemblies found in a variety of older Jeep and American Motors vehicles, including select:
- Jeep Cherokee
- Jeep Comanche
- Jeep Grand Cherokee
- Jeep Grand Wagoneer
- Jeep Liberty
- Jeep Wrangler
- AMC AMX
- AMC Concord
- AMC Eagle
- AMC Hornet
- AMC Javelin
- AMC Pacer
Application years vary considerably by vehicle, so axle identification should be confirmed before ordering.
Installation Note
Differential covers can appear similar while using different housing shapes, bolt patterns, gasket profiles, or axle families. Confirm that the vehicle is equipped with a Dana 35 axle and 10-bolt differential cover configuration before installation.
The Dana Spicer 10023535 provides a durable, OE-engineered solution for replacing or upgrading a damaged, corroded, or leaking Dana 35 differential cover.
