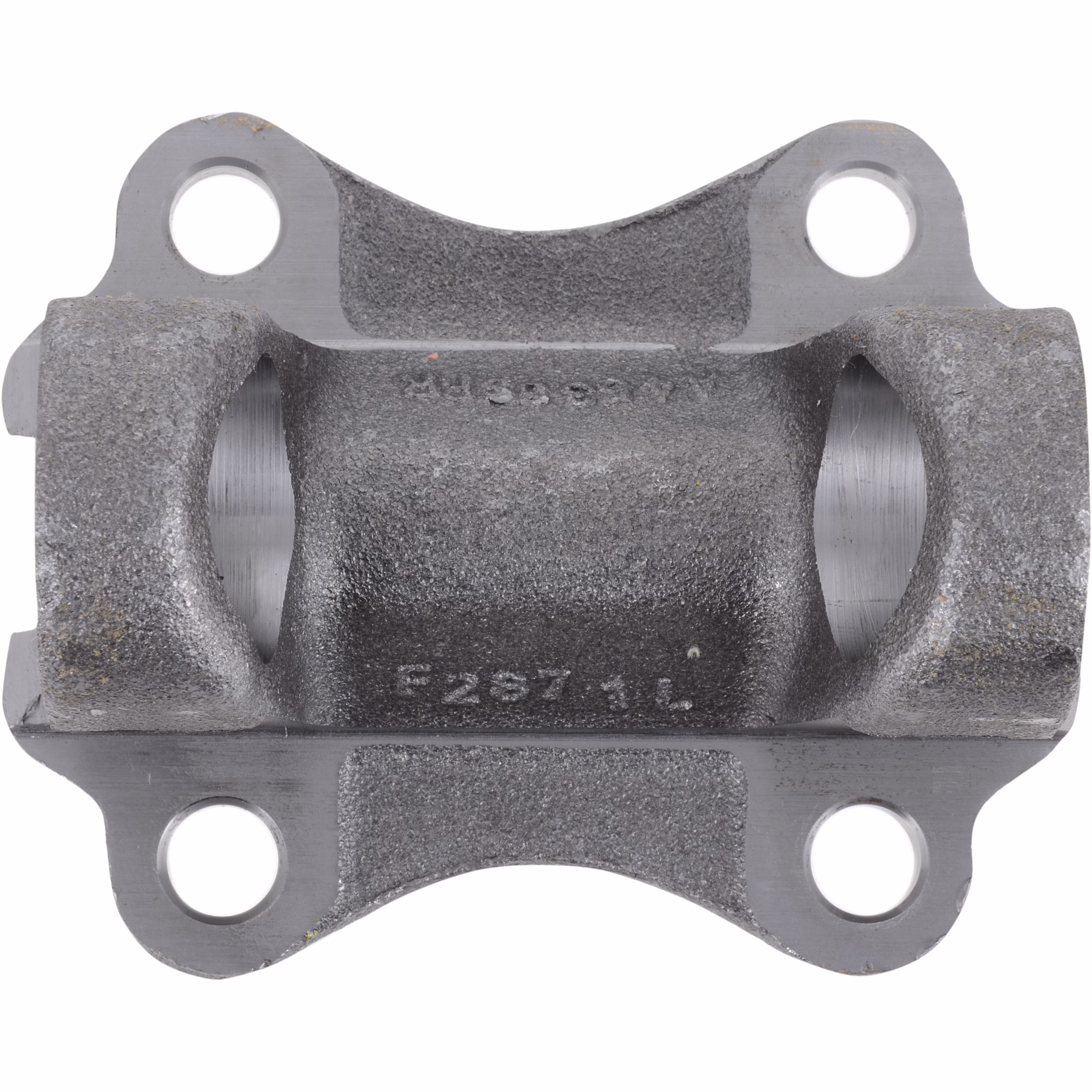

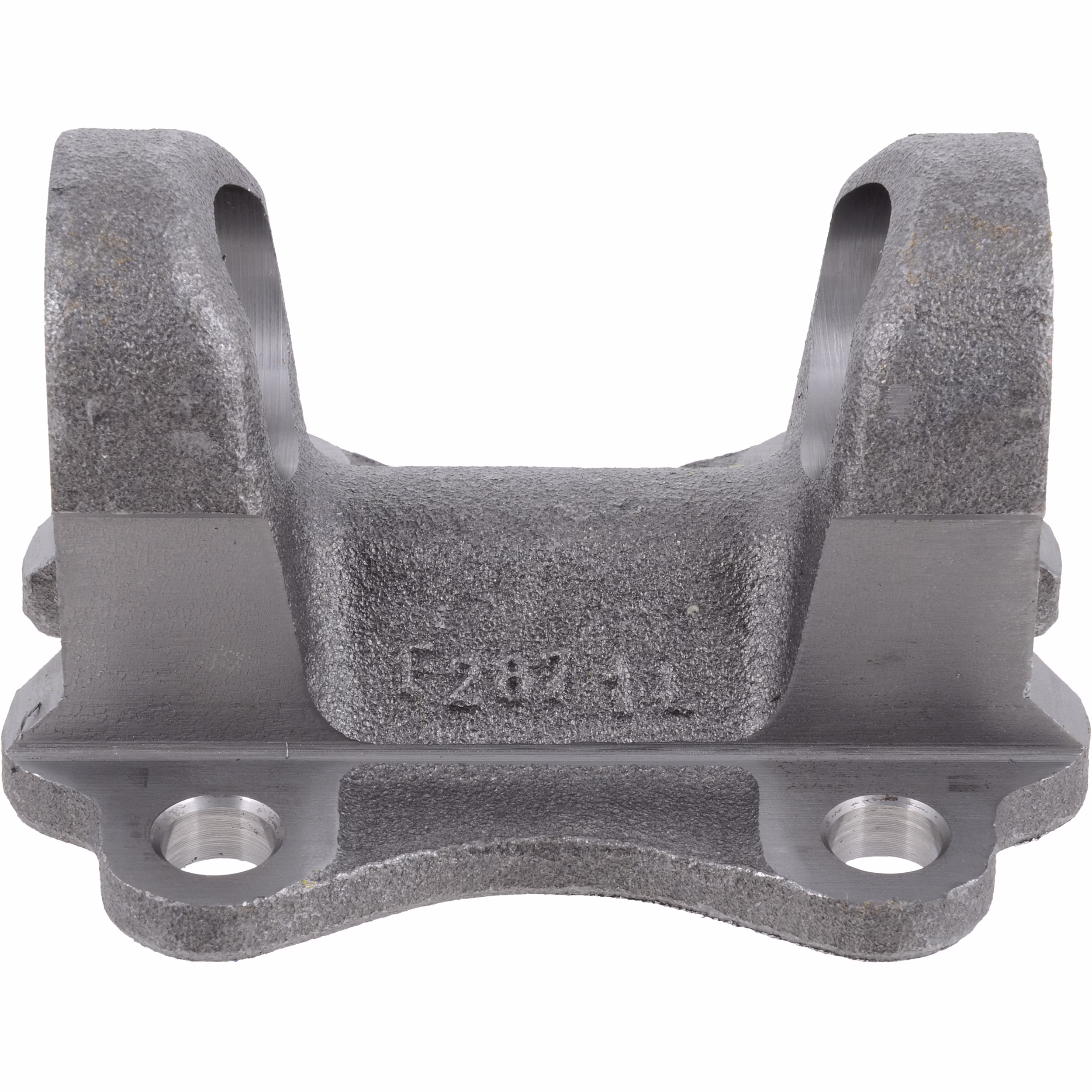

Dana Spicer 2-2-1679 1310 Series Flange Yoke
The Dana Spicer 2-2-1679 Flange Yoke is a genuine Spicer driveline component designed for 1310 Series universal joint applications. Built from durable steel and manufactured to Dana Spicer specifications, this flange yoke provides a precise connection between the driveshaft and mating flange while maintaining proper driveline alignment and torque transfer.
The 2-2-1679 uses a square four-bolt flange pattern with a 3.344-inch bolt circle, 0.406-inch drilled bolt holes, and a 1.812-inch male pilot. It is designed for a 1310 Series outside-snap-ring universal joint with a 1.062-inch bearing cap diameter and approximately 3.219-inch U-joint width. The distance from the flange face to the U-joint centerline is approximately 1.770 inches.
This flange configuration is commonly associated with select Toyota driveline applications. Because similar flange yokes may use different bolt patterns, pilots, offsets, or U-joint dimensions, the existing flange should be measured carefully before replacement.
Technical Specifications
- Manufacturer: Dana Spicer
- Part Number: 2-2-1679
- Part Type: Driveshaft Flange Yoke
- U-Joint Series: 1310
- Material: Steel
- Flange Design: Square
- Number of Bolt Holes: 4
- Bolt Circle Diameter: 3.344 in.
- Bolt Hole Diameter: 0.406 in. drilled
- Pilot Diameter: 1.812 in. male
- Flange / Swing Diameter: 4.150 in.
- Outside Yoke Dimension: 3.469 in.
- U-Joint Bearing Cap Diameter: 1.062 in.
- U-Joint Width: Approximately 3.219 in.
- Flange Face to U-Joint Centerline: 1.770 in.
- Horizontal Bolt Spacing: Approximately 2.36 in.
- Vertical Bolt Spacing: Approximately 2.36 in.
- Joint Angle: 12°
- U-Joint Retention: Outside snap ring
- UPC: 023913230272
Cross-References / Interchange Numbers
Common cross-references associated with the Dana Spicer 2-2-1679 include:
- Spicer 2-2-1679
- 2-2-1589
- 2-2-799-1
- Neapco N2-2-799-1
- Powertrain Industries 3102-15
- 221679
- D221679
- E221679
- SP 221679
- TWD221679
Features & Benefits
- Genuine Dana Spicer driveline component
- Designed for 1310 Series U-joints
- Heavy-duty steel construction
- Precision-machined male pilot for proper flange alignment
- Four-hole square bolt pattern
- Outside-snap-ring U-joint configuration
- Engineered for accurate fit, alignment, and reliable torque transmission
- Suitable for replacement and driveshaft repair applications requiring the Dana 2-2-1679 dimensions
Fitment Note
The Dana 2-2-1679 uses a square, equally spaced four-hole pattern. Similar-looking Toyota flange yokes are available with rectangular bolt patterns and are not necessarily interchangeable. Before ordering, verify the 3.344-inch bolt circle, 0.406-inch bolt holes, 1.812-inch male pilot, and 1310 Series U-joint dimensions.
