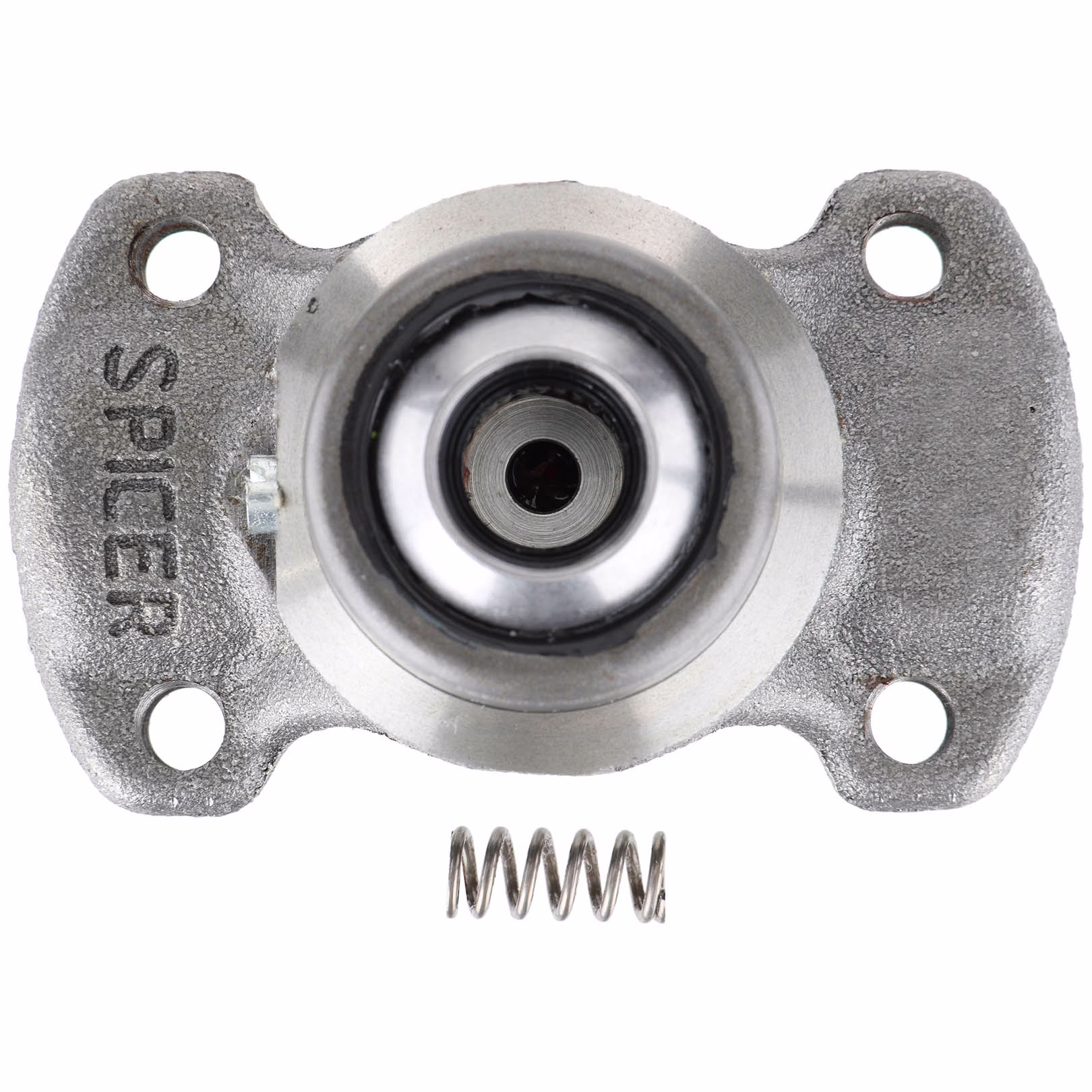

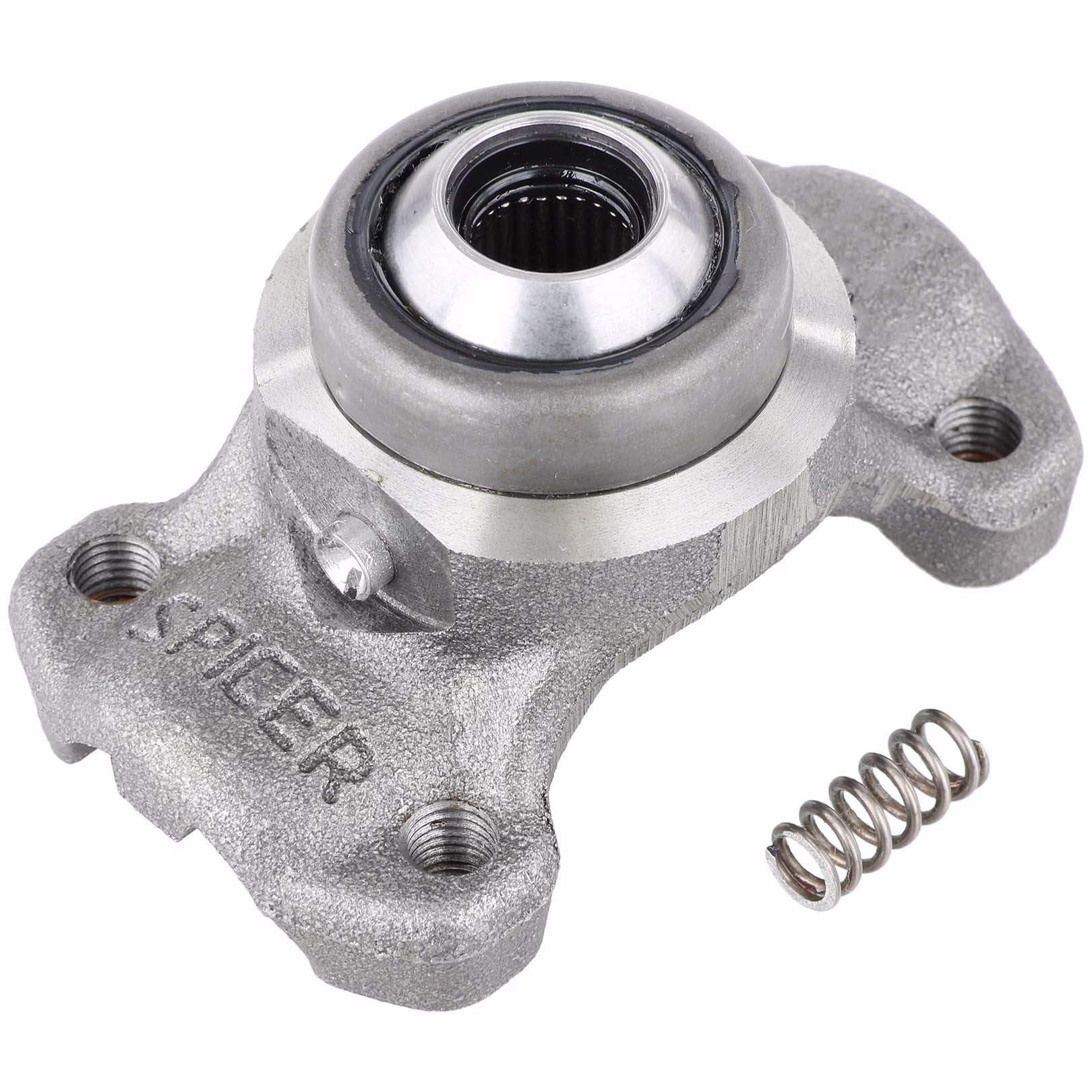

Dana Spicer 211355X 1310 Series Double Cardan CV Centering Yoke
The Dana Spicer 211355X Double Cardan CV Centering Yoke (Socket Yoke Assembly) is a genuine Spicer driveline component designed for 1310 Series double-cardan constant velocity (CV) driveshaft assemblies. This greaseable centering yoke helps maintain proper alignment and articulation between the universal joints in a double-cardan assembly, supporting smooth torque transfer and reliable driveline operation.
The 211355X is engineered to Dana Spicer OE specifications and is used in a variety of 4WD and rear-wheel-drive applications, including installations between the transfer case and front or rear axle. Its precision-machined design helps keep the CV joint centered during operation while allowing the angular movement required in the driveshaft assembly.
Technical Specifications
- Manufacturer: Dana Spicer
- Part Number: 211355X
- Product Type: Double Cardan CV Centering Yoke
- Series: 1310
- Yoke Style: 3
- Greaseable: Yes
- Ball Stud Size: 0.500 in.
- Bolt Circle Diameter: 3.218 in.
- Bolt Hole Distance A: 1.500 in.
- Bolt Hole Distance B: 2.343 in.
- Bolt Hole Size: .312-24
- Centerline to Flange Dimension: 1.531 in.
- Drive Type: 4WD / RWD
- Typical Position: Transfer case to front axle or transfer case to rear axle
- Country of Origin: USA
- Approximate Gross Weight: 0.902 lb.
- UPC: 023913228972
- VMRS: 024002074
Common Cross-References
The Dana Spicer 211355X is associated with several common OE and aftermarket cross-reference numbers, including:
- Meritor 131NCV82HD
- Neapco 7-0082
- Neapco 4400002
- SKF UJ607
- SKF 7-0082
- MOOG 607
- ACDelco 45U0801
- Ford D2TZ-4782-A
- John Deere AT68670
- Peterbilt 2GN979
- Midwest 211355XR
- Spicer SP211355X
- Dana 2104-211355X
- Dana 211355XSB
Features & Benefits
- Genuine Dana Spicer replacement component
- Designed for 1310 Series double-cardan CV assemblies
- Greaseable design allows periodic lubrication for longer service life
- Helps maintain correct CV-joint alignment and articulation
- Precision-machined for accurate fit and proper driveline geometry
- Suitable for a wide variety of light-, medium-, commercial-, and off-highway driveline applications
- Manufactured and validated to Dana OE specifications
Application Note
The 211355X is a centering yoke used within a double-cardan CV driveshaft assembly, rather than a conventional standalone end yoke. Correct centering-yoke geometry is critical to proper operation of the two U-joints in the CV assembly.
Before ordering, verify the 1310 Series configuration, 0.500-inch ball stud size, bolt pattern, and 1.531-inch center-to-flange dimension against the existing driveshaft or application parts breakdown.
Dana Spicer 211355X is an ideal OE-quality replacement when rebuilding or repairing a compatible 1310 Series double-cardan CV driveshaft assembly.
