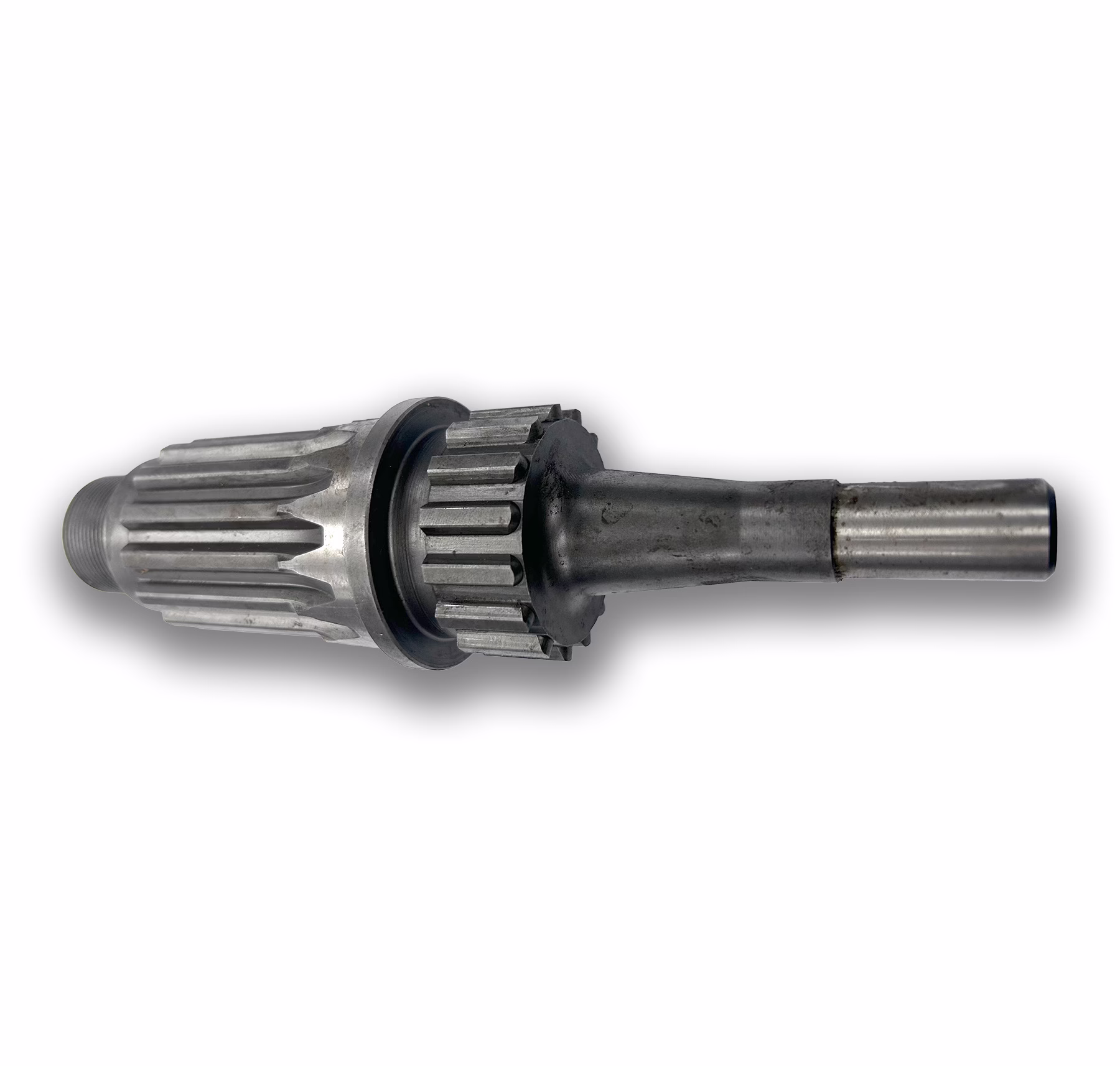

Dana Spicer 237256 Disconnect Shaft
The Dana Spicer 237256 Disconnect Shaft is a genuine heavy-duty drivetrain component used within the output-shaft/disconnect assembly of select Spicer Off-Highway transmissions. Designed for demanding industrial and off-highway service, the shaft forms part of the mechanism that transfers—or disengages—power through the transmission output section. Dana/Spicer parts documentation identifies 237256 specifically as the “Shaft – Disconnect.”
The 237256 is found in Spicer Off-Highway T20000-series output-shaft groups, including documented model configurations such as 266126 T20000. Within that assembly, the disconnect shaft works in conjunction with the drive coupling, bearing, retaining rings and output-shaft components to provide the correctly supported rotating connection required by the transmission.
Because this component operates within a high-load power-transfer assembly, proper shaft fit, bearing support and alignment are critical to reliable transmission operation. Genuine Dana Spicer components are manufactured for the dimensional accuracy and durability required in heavy equipment operating under high torque, shock loading and continuous-duty conditions.
Key Features & Specifications
- Manufacturer: Dana / Spicer
- Part Number: 237256
- Product Type: Disconnect Shaft
- Application Type: Off-highway transmission
- Transmission Family: Select Spicer T20000-series applications
- System Location: Transmission output-shaft / disconnect assembly
- Condition: Genuine Dana Spicer replacement component
- Typical Applications: Heavy construction, material handling, industrial and other off-highway equipment
Related Output-Shaft Components
Dana documentation shows the 237256 Disconnect Shaft installed with several related components, including:
- 244699 – Drive Coupling
- 231776 – Bearing Retaining Ring
- 225825 – Disconnect-Shaft Ball Bearing
- 223901 – Bearing Retaining / Snap Rings
- 230954 – Oil Seal
These parts form part of the output/disconnect section and should be inspected for wear when servicing the shaft.
Aftermarket application references also identify 237256 as a Dana Spicer off-highway disconnect shaft, and it is commonly associated with Clark/Spicer 18,000- and 24,000-series drivetrain applications.
For proper fitment, verify the transmission model, assembly number and bill of material before ordering, as the 237256 is used only in specific output-shaft configurations.
The Dana Spicer 237256 Disconnect Shaft is an OE-quality replacement for rebuilding or repairing compatible Spicer off-highway transmission disconnect assemblies where dependable torque transfer, proper alignment and long service life are essential.
