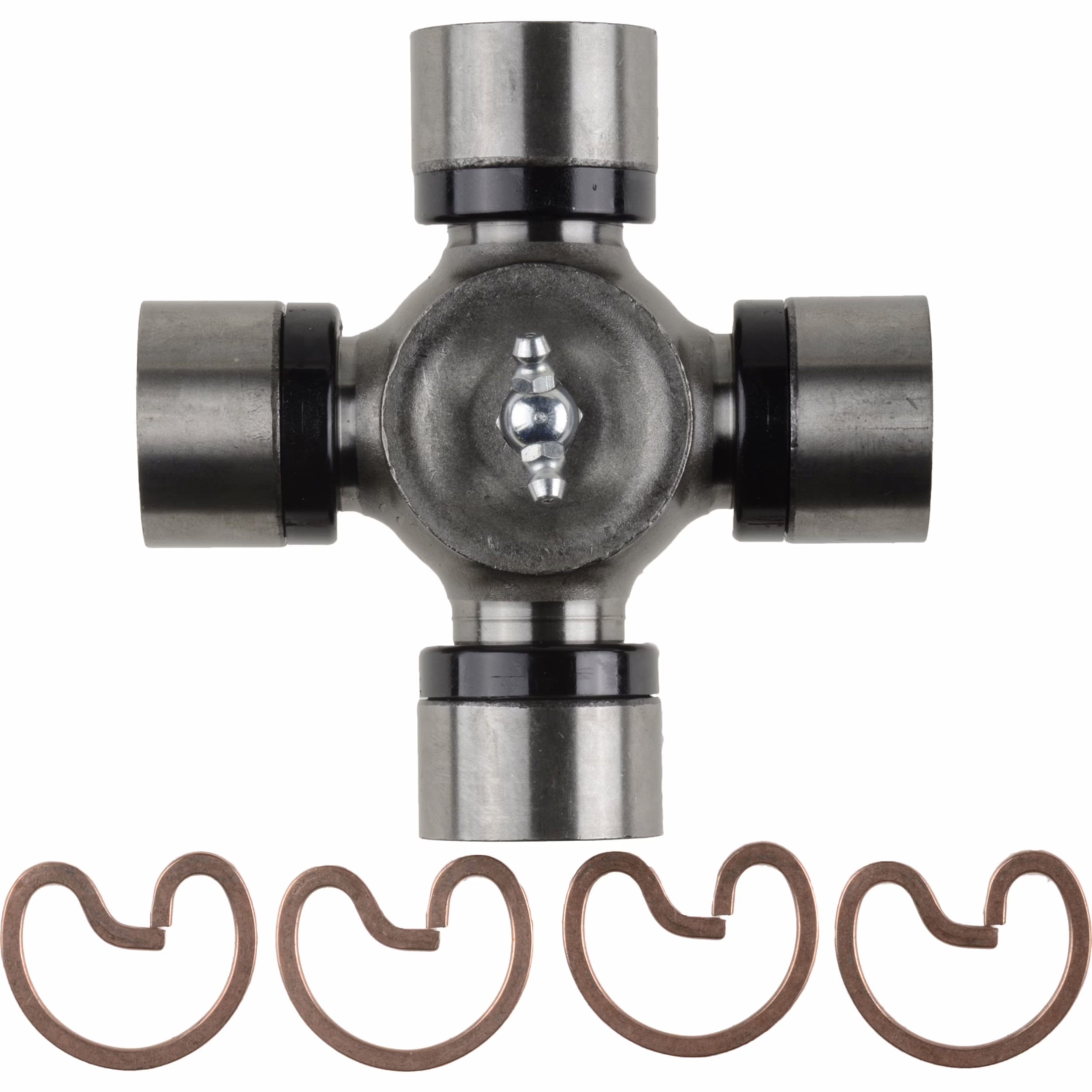

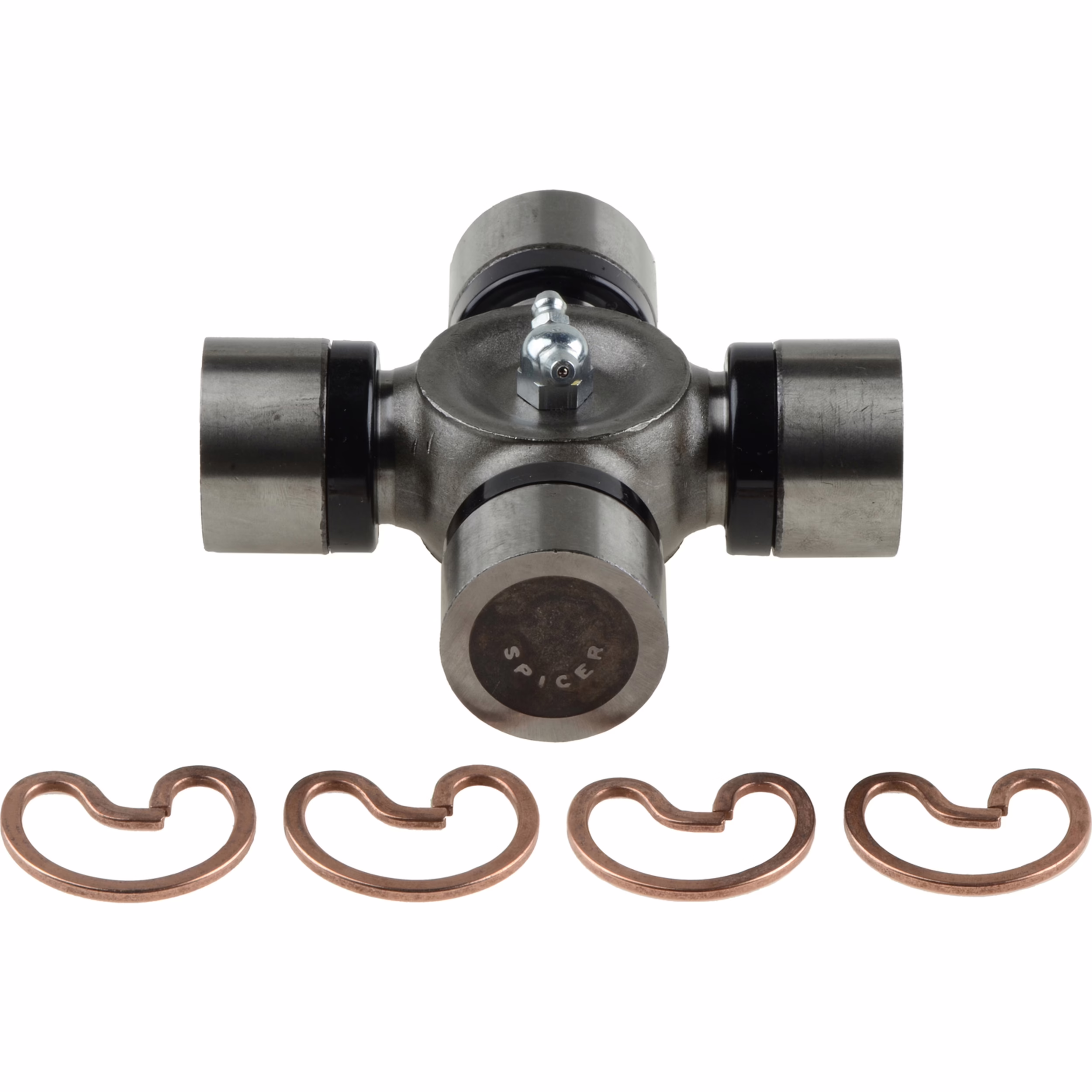

The Dana SPL100-1X is a greasable universal joint designed for heavy-duty driveline applications, particularly in commercial trucks and off-highway vehicles. Manufactured by Dana under the Spicer brand, it’s part of the SPL100 series, known for its robust performance and reliability.
Key Specifications
- Series: SPL100

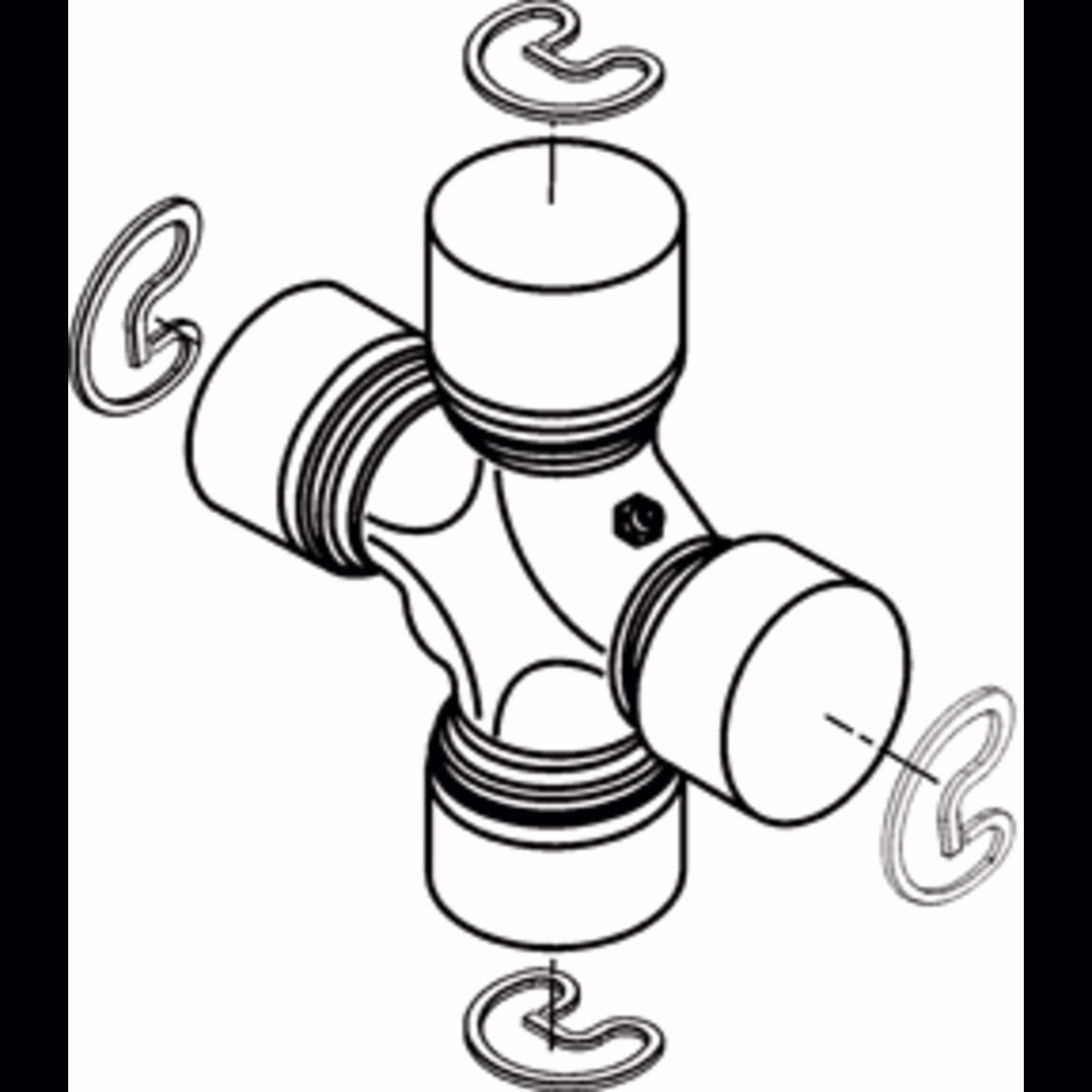

- Style: Outside Snap Ring (OSR)

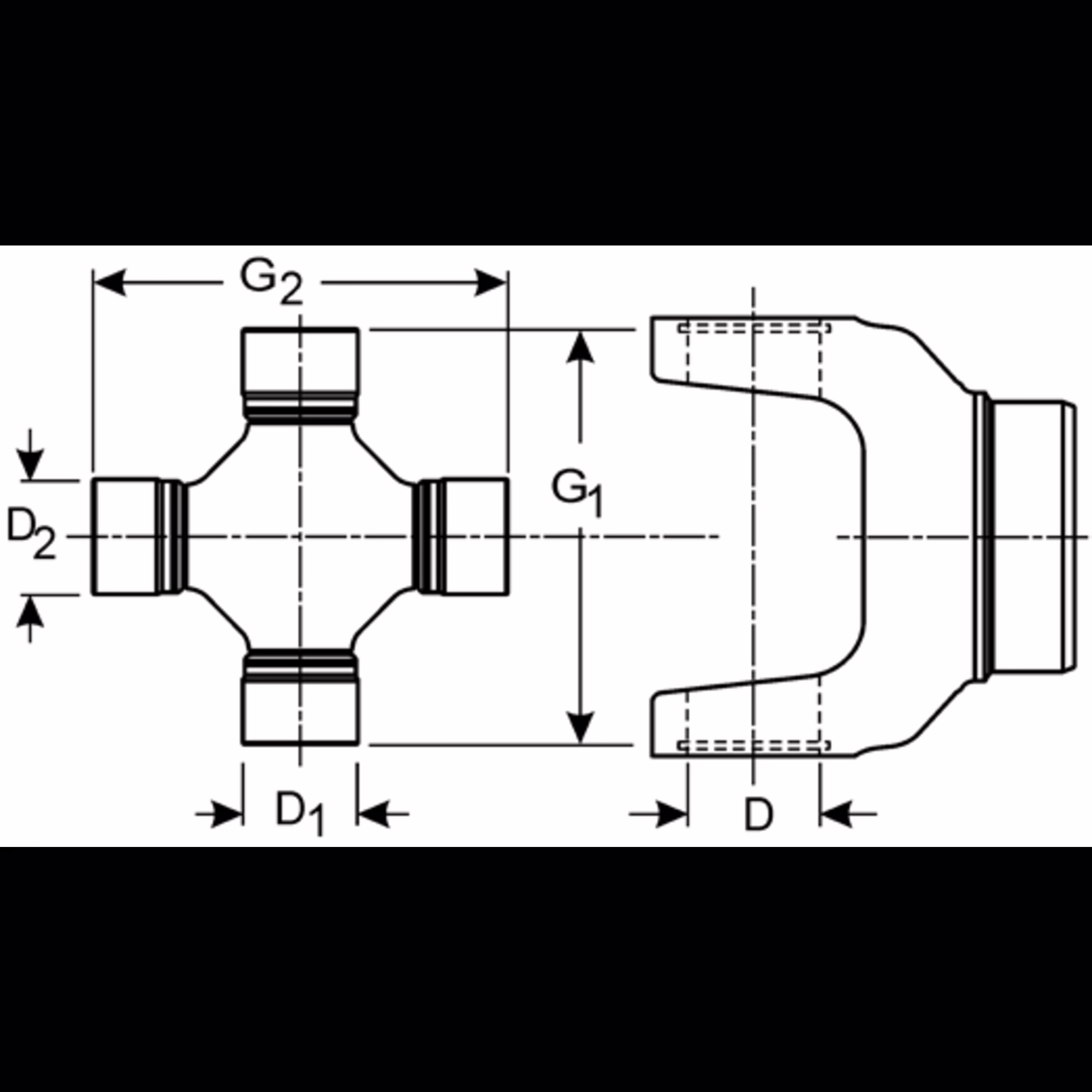

- Bearing Cap Diameter: 1.625 inches (both axes)
- Lock-Up (Width Across Bearing Plates): 4.953 inches
- Lubrication: Greaseable
- Includes: U-joint, bolts, and lock straps
- OEM Compatibility: Designed to meet or exceed OEM specifications for SPL100 series driveline systems.
