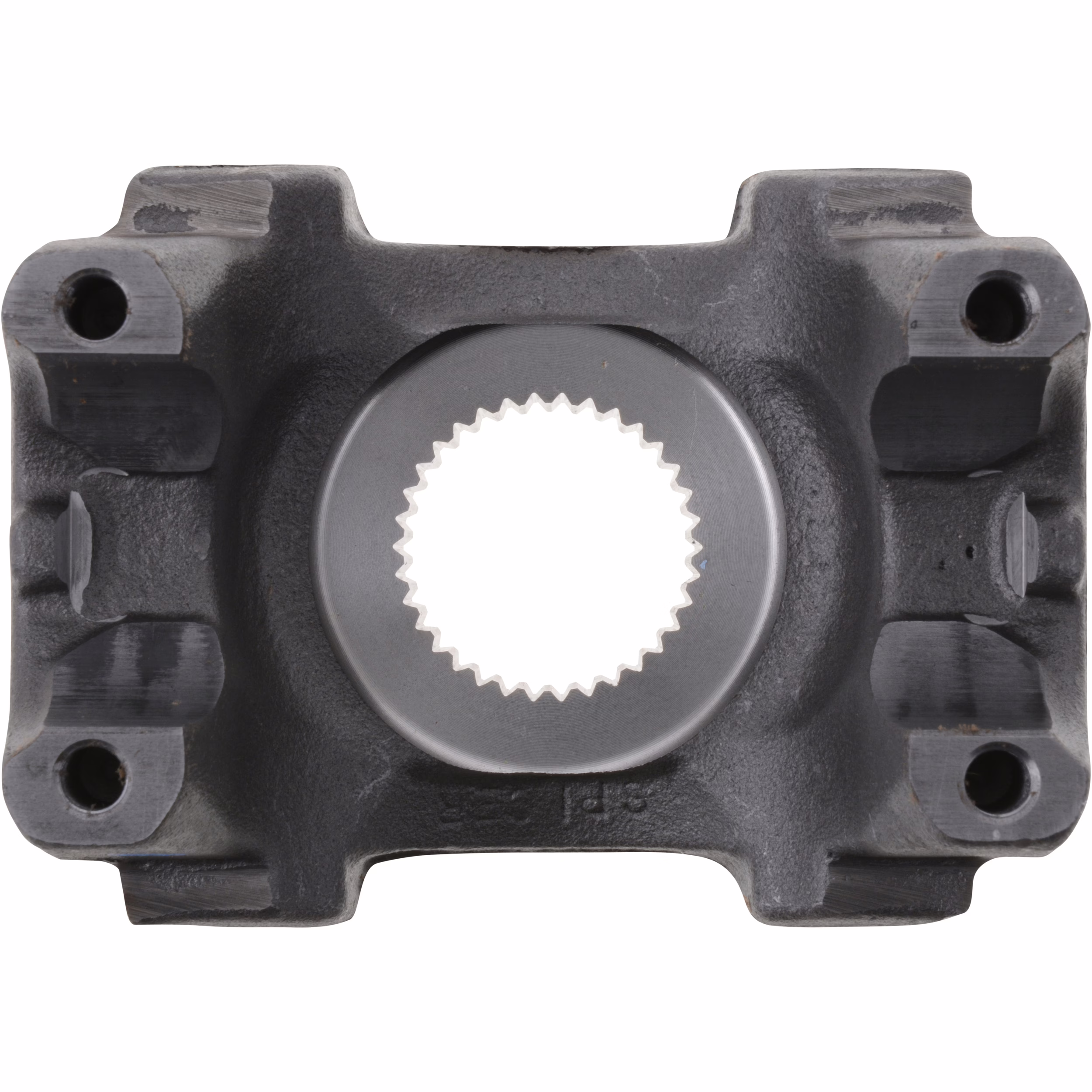

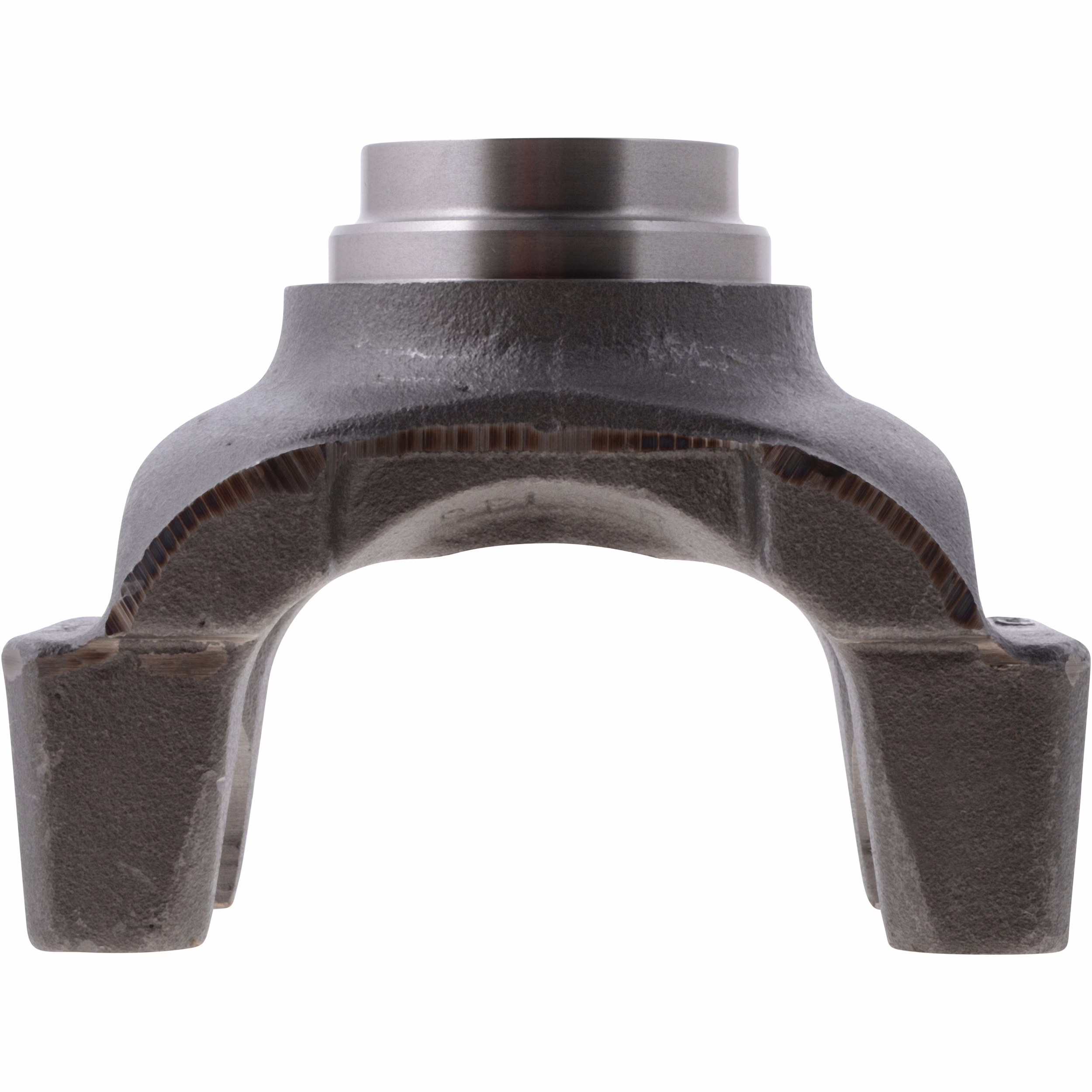

Dana 5-4-7171-1 End Yoke
5471711GTP
Genuine Dana replacement part for OEM-level performance in drivetrain and axle systems. Manufactured to strict quality standards for longevity and reliability.

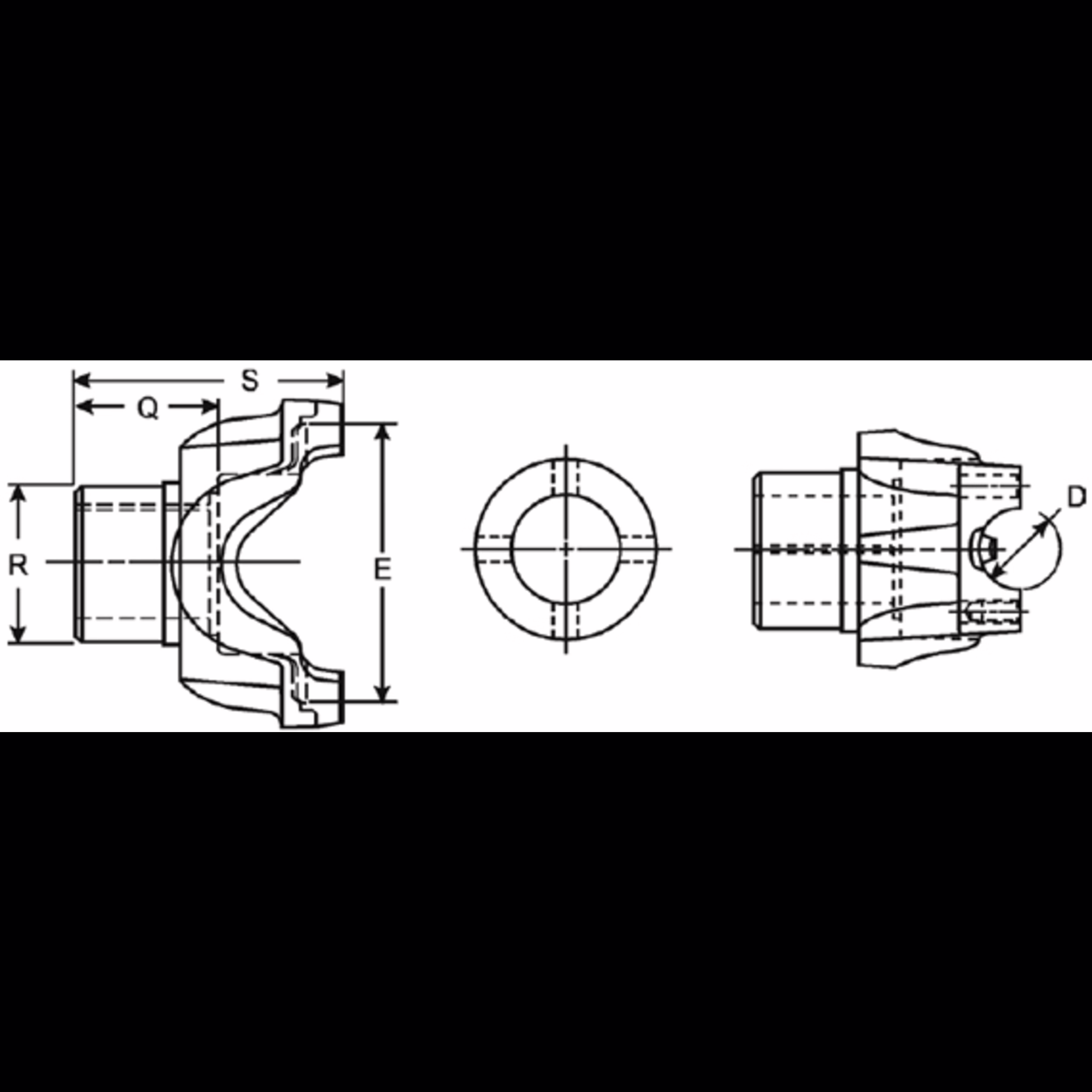

Series / Style: 1610 (Half-Round / HR)
- 34-spline involute bore (major diameter approximately 1.790″)
- Hub outer diameter: 2.188″
- Length thru hole: 2.250″
- Center-line to end of hub: 4.125″
- Outside yoke dimension: 5.312″
- Yoke bearing dimension: 1.875″
- Counter-bore depth: 0.500″
- Maximum joint angle: 22°
- Material: forged steel, engineered for heavy-duty driveline use
