Dana Spicer 2-2-1379 1310-Series Drive Shaft Flange Yoke

The Dana Spicer 2-2-1379 Flange Yoke is a genuine Spicer driveshaft component designed to connect a 1310-series universal joint to a compatible four-bolt companion flange. It is commonly cataloged as a flange-adapter yoke for select Ford 8.8-inch truck axle applications using the larger bolt pattern. Its rectangular steel construction provides the strength and dimensional accuracy needed to transfer torque while maintaining proper driveshaft alignment.

The 2-2-1379 uses four equally spaced drilled mounting holes on a 4.250-inch bolt circle, a 2.000-inch female pilot, and a through-hole in the center of the flange. The yoke accepts a 1310-series U-joint with 1.062-inch bearing caps and is designed for outside-snap-ring-style joint retention.

Full Round Journal Design: Offers enhanced strength and fatigue resistance versus half-round styles.
Forged Steel Construction: Ensures long-term durability under heavy load and high-stress conditions.
Precision Machining: Guarantees a tight, secure fit within driveline assemblies.
Corrosion-Resistant Finish: Built to withstand harsh environmental and working conditions.
OEM-Grade Quality: Meets or exceeds original equipment manufacturer specifications.

Technical Specifications

Part Number: 2-2-1379
Series: 1710
Bolt Circle Diameter (BCD): 7.125 inches
Pilot Diameter: 5.00 inches
Number of Bolt Holes: 8
Bolt Hole Diameter: 0.50 inches
Overall Height: 3.25 inches (approx.)
Material: Forged steel
Style: Full Round Yoke
Use With: 1710 series universal joints

Interchange Information

This flange yoke may be interchangeable with other part numbers used by OEMs or aftermarket suppliers. Always confirm fitment with specifications before substitution.

Meritor: 2-2-1379
Neapco: N2-2-1379, 6228825
Spicer: 2-2-1379
Automann: 100.1379
PACCAR 2-2-1379
Volvo 2104-221379
Volvo SP221379
International/Navistar E221379, 221379
Mack 2104-221379
Ford FOTZ4851C
Daimler/Freightliner SP 2 2 1379
Other Refs: FL219, 2501379, YK1379

Weight	0.4 lbs
Category	Driveline Components
Subcategory	Shims

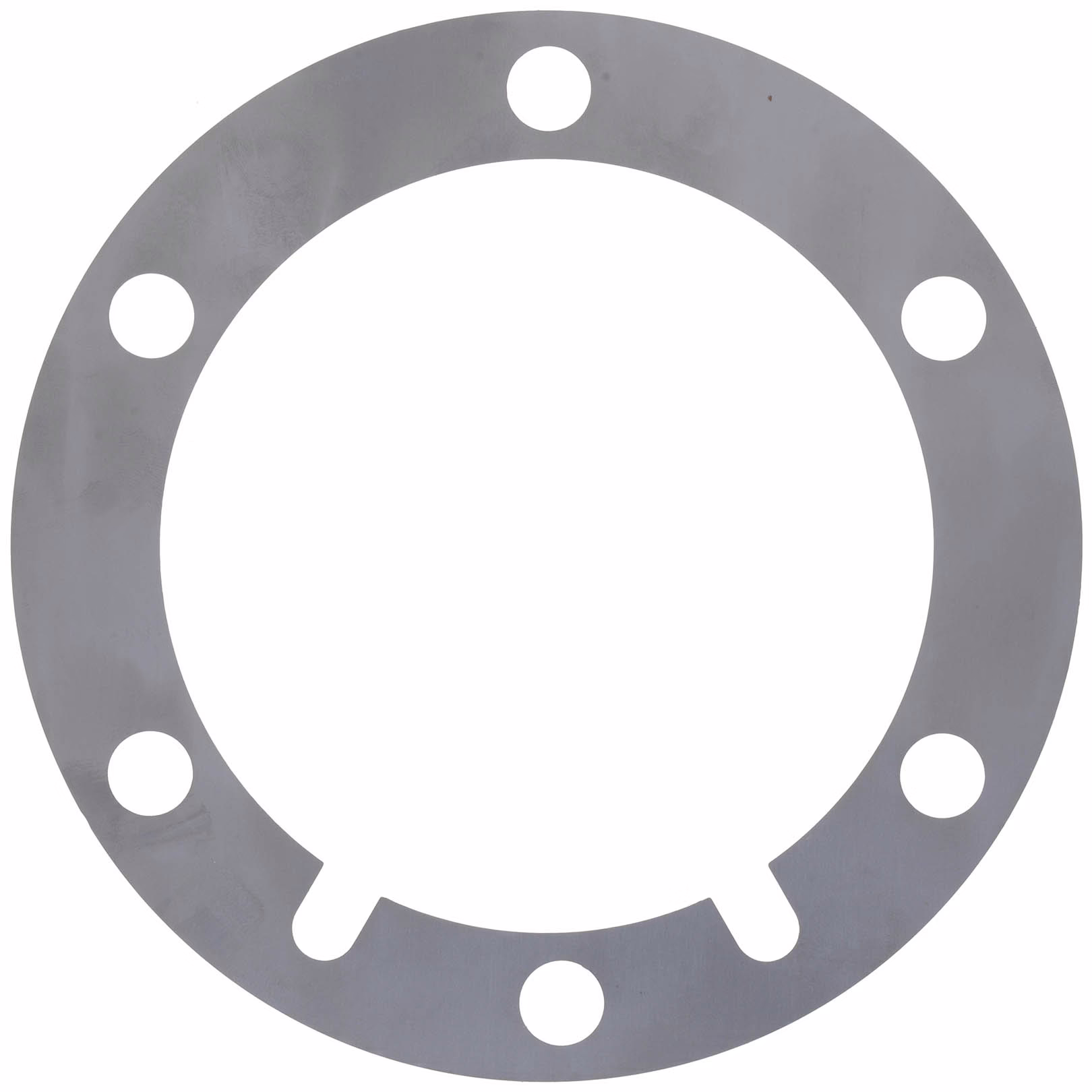

Dana 067920 Shim .003
