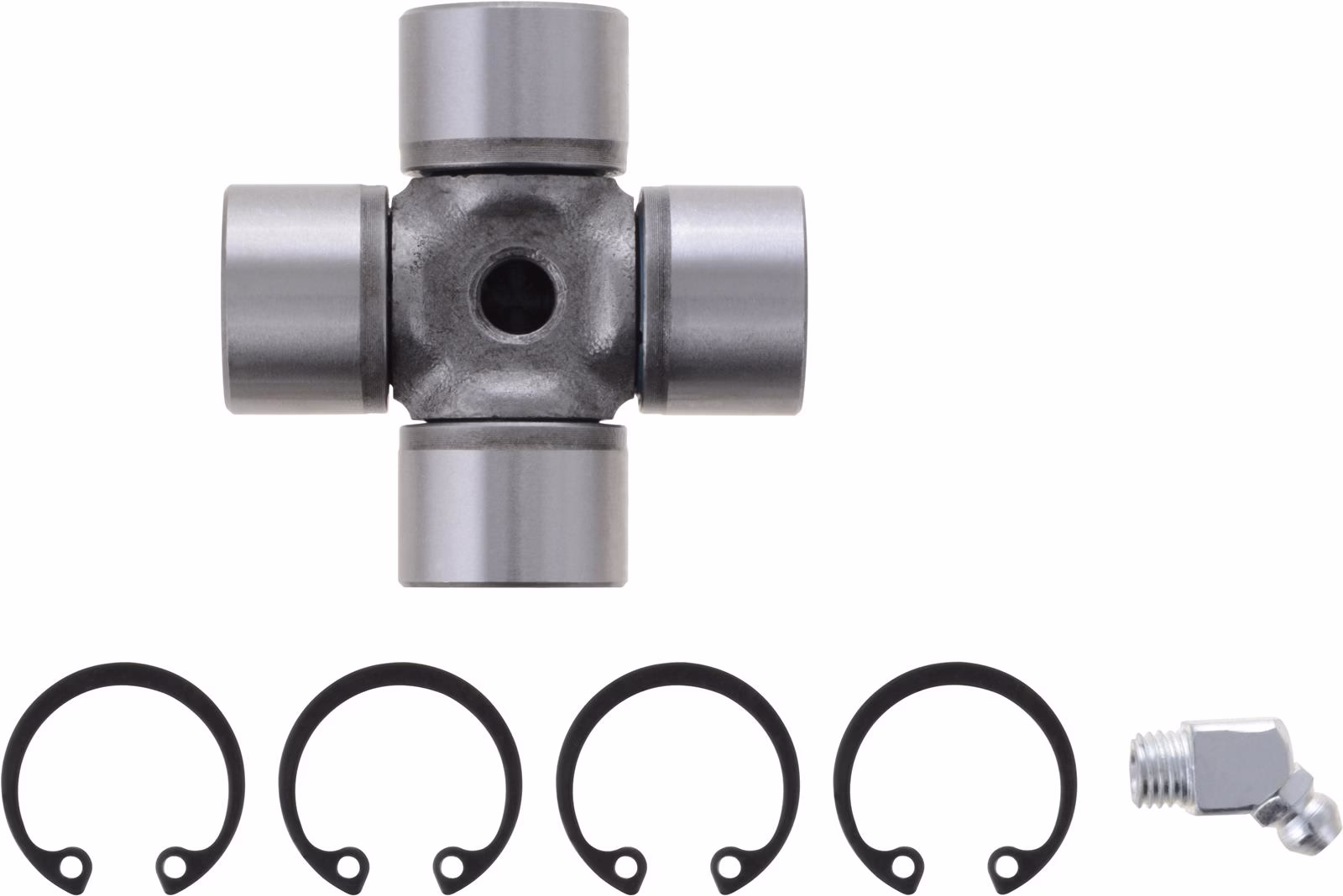

Neapco 1-1001 Walterscheid 2100 Series Universal Joint
The Neapco 1-1001 Universal Joint is a greaseable metric U-joint designed for Walterscheid 2100 Series PTO and driveline applications. Built for reliable torque transfer and smooth articulation, the 1-1001 is well suited for agricultural, industrial, vocational, and power take-off driveline systems where this compact metric joint configuration is specified.
Neapco identifies the 1-1001 as an outside-snap-ring (OSR) universal joint with round bearing caps. It uses a grease fitting located in the cross, allowing periodic lubrication to help protect the needle bearings and extend service life in demanding operating environments. Neapco’s dimensional catalog lists the joint with 0.866-inch bearing caps and a 2.157-inch lock-up dimension on both axes.
Technical Specifications
- Manufacturer: Neapco
- Part Number: 1-1001
- Product Type: Universal Joint / U-Joint Kit
- Driveline Series: Walterscheid 2100 Series
- Application Type: Metric PTO / Driveline
- Bearing Type: Round
- Retention Style: Outside Snap Ring (OSR)
- Greaseable: Yes
- Lube Fitting: 1 fitting in the cross
- Bearing Cap Diameter – Axis 1: 0.866 in.
- Bearing Cap Diameter – Axis 2: 0.866 in.
- Lock-Up Dimension – Axis 1: 2.157 in.
- Lock-Up Dimension – Axis 2: 2.157 in.
Cross-References
- Dana Spicer 5-3233X
- Dana Spicer 25-3233X
- MOOG 812
- Precision 812
- SKF 1-1001
- SKF UJ812
- ACDelco 45U6003
Features & Benefits
- Designed for Walterscheid 2100 Series driveline systems
- Metric PTO-style universal joint
- Greaseable cross for routine maintenance
- Outside-snap-ring retention
- Equal bearing-cap and lock-up dimensions on both axes
- Suitable for replacement and driveline rebuild applications
- Neapco aftermarket driveline construction for automotive, heavy-truck, off-highway, agricultural, and industrial markets
Fitment Note
Universal joints can appear nearly identical while differing by only a few thousandths of an inch in cap diameter or lock-up dimension. Before ordering, confirm the 0.866-inch bearing-cap diameter, 2.157-inch lock-up dimension, outside-snap-ring configuration, and Walterscheid 2100 Series application. The Neapco 1-1001 is a direct aftermarket alternative to the Dana Spicer 5-3233X for compatible Walterscheid 2100 Series PTO and driveline assemblies.
