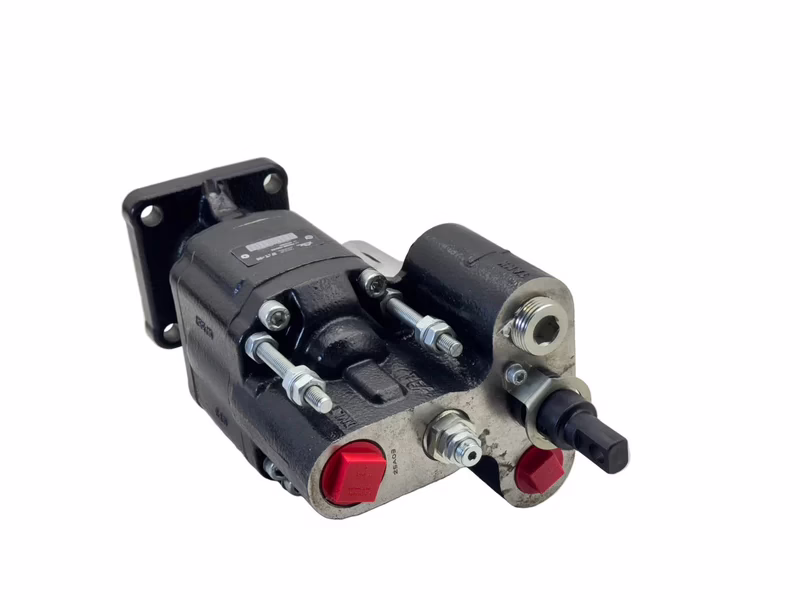

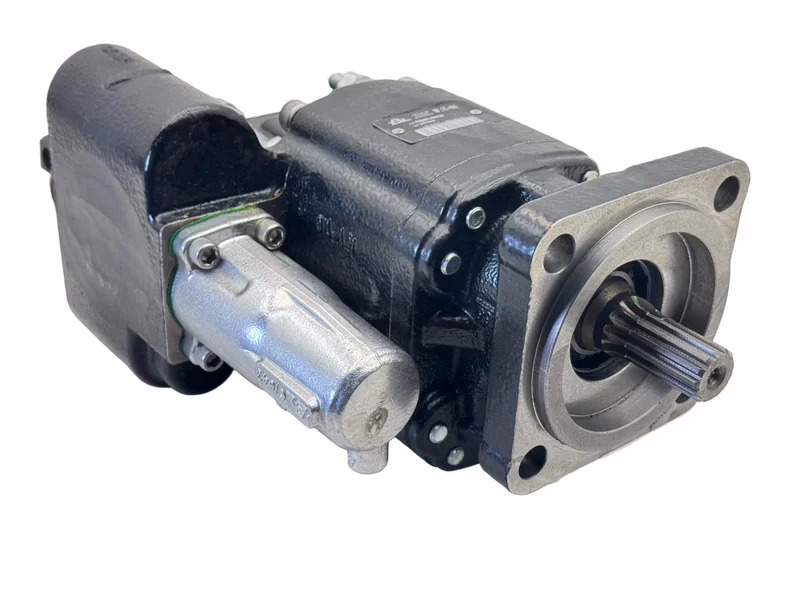

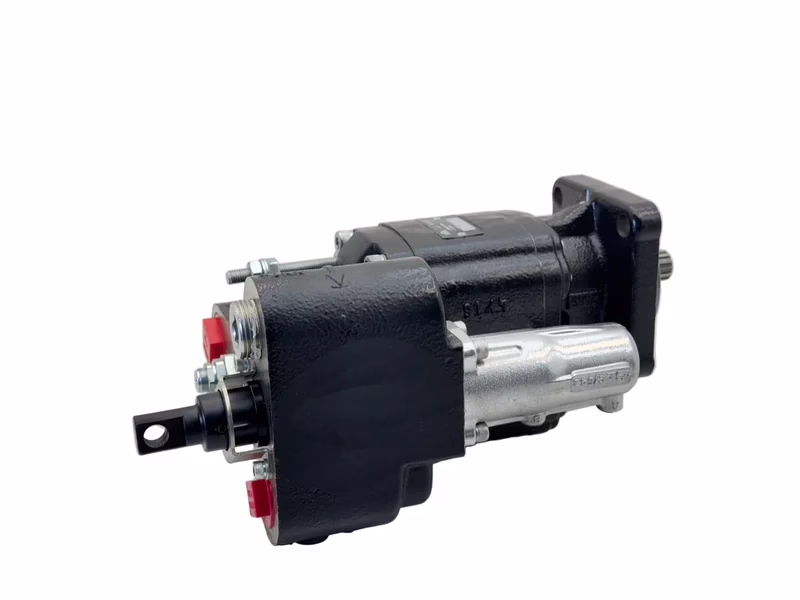

The Bezares Eaton PTBZ102LAS254SN is a direct-mount hydraulic dump pump engineered for dump truck and trailer applications requiring reliable, high-flow lifting performance. Built with a compact gear pump design and air-shift control, it allows in-cab operation for faster, safer dumping cycles. Designed for CCW (left-hand) rotation, this pump integrates seamlessly with PTO-driven wet kit systems—especially on Eaton/Fuller manual transmission setups.
- Flow Rate: 26 GPM @ 1000 RPM
- Pump Type: Gear pump (dump pump configuration)
- Shift Type: Air shift (in-cab control)
- Rotation: CCW (counterclockwise / left-hand)

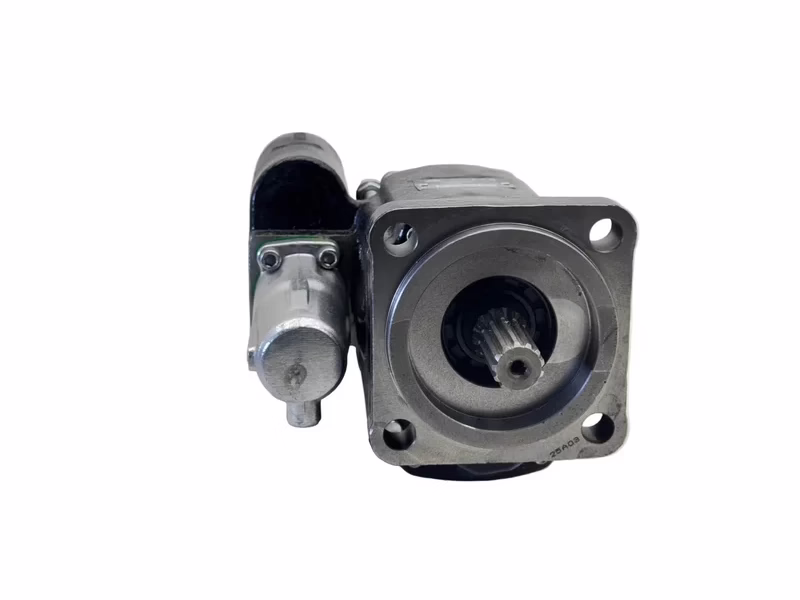

- Mounting: Direct mount, SAE B 4-bolt flange
- Shaft: 7/8″ – 13 tooth spline (standard BZ102 configuration)
- Displacement: 6.1 in³/rev
- Max Continuous Pressure: 2,900 PSI
- Max Peak Pressure: 3,200 PSI
- Relief Valve Setting: 2,175 PSI
- Operating Speed Range: 600–1800 RPM
- Ports: Rear pipe ports (typical dump configuration)
Interchange / Cross References:
- Eaton / Fuller PTBZ102LAS254SN
- Parker C102-D-25-1-AS (CCW)
- Permco DMD-25-Z-L-AS-25
- Metaris MH102-C-25-L-AS
- Muncie E2X / E3X 25-series air shift
