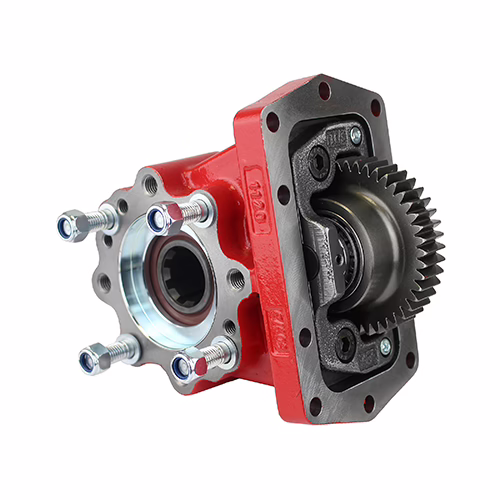

Bezares PT3940POE783DA 10-Bolt PTO

Bezares PT3940POE783DA 10-Bolt PTO

The 3940 Series PTO is a heavy-duty “10-bolt” or large-mount PTO unit designed for truck/chassis applications, built to handle vocational loads such as utility bodies, dump trucks, cranes and other auxiliary equipment.
One of its distinguishing features is the DIN 5462 output shaft option (standard) and a low-profile housing to make installation easier in tight engine bay or chassis spaces.
Another key point: it’s built to support “larger pumps in the market” thanks to reinforced mounting, large flange bolts, and high-quality materials.

Key Features & Benefits

• Robust Construction: The 3940 Series uses cast-iron housing, large 12 mm flange bolts, deep-carburised gear teeth, and high-quality seals/gaskets to support heavy duty use.
• DIN 5462 Output Shaft (Standard Option): Provides flexibility to use adapter kits to change to different shaft types (SAE, keyed, spline) for pump mounting and drive options.
• Low-Profile/Installation Friendly Design: The housing is designed to allow easier fitment and clearance of pumps and chassis components, plus pump rotation in increments (e.g., 45°) for better installation flexibility.
• Wide Configuration Options: Supports a range of input gears, output flange/shaft options, shift types (mechanical, pneumatic/air etc.), and ratios.
• Suitable for Many Applications: From utility trucks, dump bodies, vacuum trucks, service bodies, walking floors, low-boys, etc.
