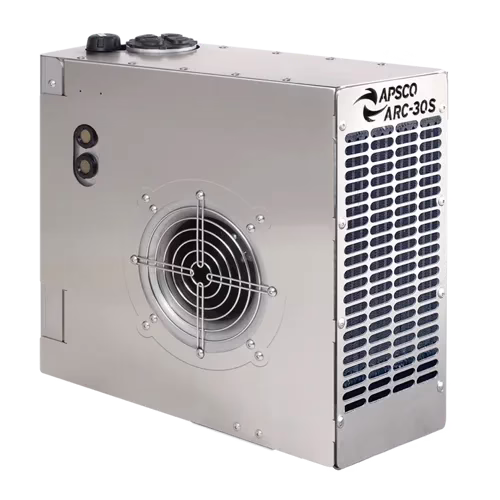

Apsco ARC-30S Hydraulic Cooler, Reservoir and Filter System
Excessive heat in your equipment’s hydraulic system reduces the efficiency of your system and the life of your hydraulic oil, resulting in lower power and higher operating costs. The ARC-30 space-efficient solution provides superior heat rejection, lowering the overall cost of ownership of your equipment.
Tech Specs
SIZE
- Flow Rate = up to 30 gpm
- Reservoir Size = 4 gallons
- Basic Dimensions = 20” Long x 8” Wide x 20” Tall
- Weight (dry) = 100 lbs
FEATURES
- Heat Rejection Rate = 20 Hp @ 30 gpm with 80°F
- Entering Temperature Difference (ETD)
- Fan motor = Hydraulic drive requires 1.2 gpm
- Corrosion Resistant components with SS case
- 10 micron Filer Element
- Adjustable Pressure Relief Valve factory set at 3000 psi
- Cold-Weather bypass
- Oil Level Sight Glass
PORTS
- Suction Port = SAE-24 ORB
- High Pressure Port = SAE-16 ORB
- Return Port = SAE-20 ORB
- Drain Port = SAE-8 ORB
- Gauge Port = SAE-4 ORB
