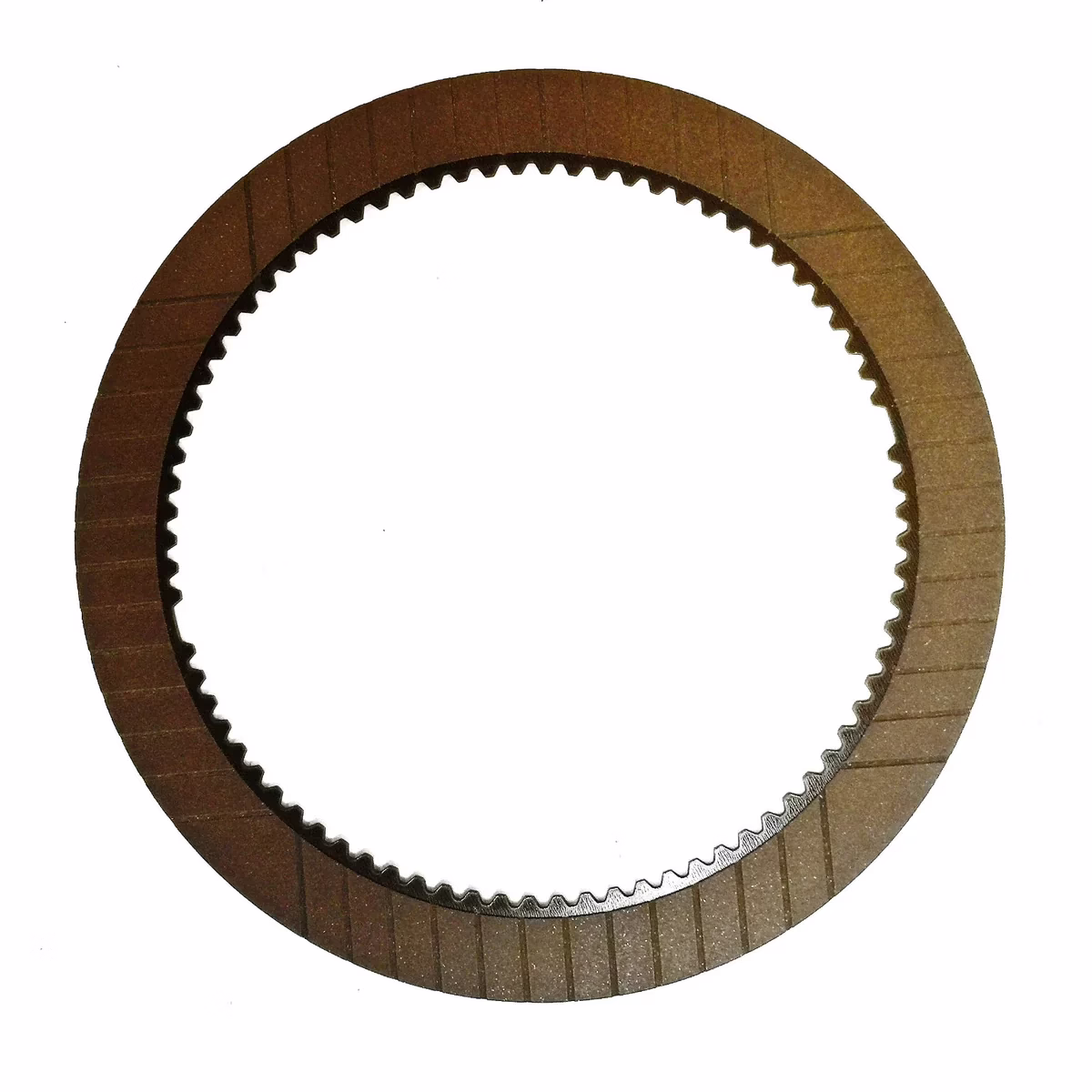

Allison 29536339 Friction Plate – C2 Clutch Pack Plate for Allison 4000 Series Transmissions
The Allison 29536339 Friction Plate is a genuine OEM automatic transmission clutch friction disc designed for use in Allison Heavy Duty 4000 Series transmissions. This internal transmission component is part of the C2 clutch pack assembly, where it works with steel reaction plates to transmit engine torque through the transmission’s planetary gear system during gear engagement.
Manufactured with specialized friction material engineered for Allison automatic transmissions, the 29536339 friction plate provides consistent clutch engagement, high heat resistance, and reliable torque transfer in demanding commercial vehicle applications. It is commonly used in heavy-duty trucks, vocational vehicles, military equipment, and off-highway applications where Allison 4000 Series transmissions are selected for durability and high torque capacity.
Product Overview
Manufacturer: Allison Transmission
Part Number: 29536339
Component Type: Friction Plate / Clutch Disc
Transmission Family: Allison 4000 Series™
Clutch Location: C2 Clutch Pack
Application: Heavy-duty automatic transmissions
Condition: New OEM replacement component
Allison identifies part number 29536339 as a PLATE-FRICTION, C2 component used in Allison 4000 Series transmission overhaul applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allison Transmission |
| Part Number | 29536339 |
| Part Type | Friction Plate |
| Clutch Pack | C2 |
| Transmission Series | Allison 4000 Series |
| Material | Composite friction lining bonded to steel core |
| Outside Diameter | Approx. 12.37 in (314.2 mm) |
| Inside Diameter | Approx. 9.67 in (245.6 mm) |
| Thickness | Approx. 0.127 in (3.23 mm) |
| Spline Type | Internal spline |
| Teeth | 99 |
| Groove Design | 2-pass groove |
| Weight | Approximately 1.02 lbs |
